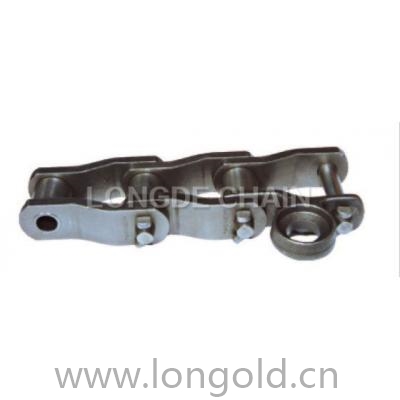

重載彎板傳動鏈條II

重載彎板傳動鏈條以高精度、耐磨損和耐疲勞著稱，其特殊的彎鏈板結構更適于帶有較大沖擊性的載荷傳動和起動頻繁的間歇性工作環境，主要應用于礦山、冶金、工程機械等行業。

下載PDF產品資料

客戶留言在線咨詢

產品介紹規格型號

重載彎板傳動鏈條的特點

重載彎板鏈條是由一系列的彎板鏈節用銷軸連接組成，鏈板與銷軸的連接可以采用過盈配合或采用機械止鎖的方式，其銷軸、鏈扳均經過特殊熱處理可進行全面硬化和部分硬化，提供了最大耐碰撞性和最佳的抗磨壽命。重載彎板鏈條有如下的特點：

◎ 高精度、耐磨損性和耐疲勞性。

◎ 其特殊的彎鏈板結構更適于帶有較大沖擊性的載荷傳動和起動頻繁的間歇性工作環境。

重載彎板傳動鏈條的用途

主要應用于礦山、冶金、工程機械等行業的較大型設備及繁重工況下的動力傳動。

型號表示·訂購方法

1.型號表示

2.訂購方法

◎ 標準包裝訂購

LD鏈條一般按標準包裝為單位備常規庫存。1個標準全長使用包含一個接頭供使用。如果需要分成2根以上的使用或還需要更長連接起來使用時，請另行訂購接頭。

◎ 按所需長度訂購

可按照您指定的鏈條長度交貨。先將您所需的鏈條長度換算成鏈條的鏈節數量，再訂購。

3. 訂購鏈條時的注意事項

當鏈條型號不明確時

（1）必須確認鏈條的規格（強力型、材質等規格）。并向裝置的制造商確認。

（2）鏈條的鏈板上刻有鏈條的尺寸、規格可供確認。

（3）請測量鏈條的節距、滾子直徑、內鏈節內寬、鏈板厚度。

（4）電話或者郵件聯系我們的技術人員現場測量確認鏈條的規格。

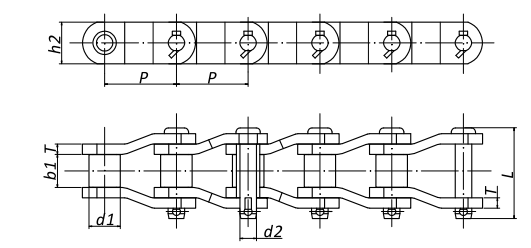

重載彎板傳動鏈條II 尺寸圖

隆德鏈號	節距	滾子直徑	內節內寬	銷軸直徑	銷軸長度	鏈板高度	鏈板厚度	抗拉強度	平均抗拉強度	每米長重
	P	d1	b1	d2	L	h2	T	Q	平均抗拉強度	每米長重
	P	max	min	max	max	h2	T	min	Q₀	q
	mm	mm	mm	mm	mm	mm	mm	kN/lbf	kN	kg/m
LD-P78.10F10-HCL	78.10	33.30	38.10	17.15	94.50	44.50	9.70	360.0/81817	414.00	14.00
LD-P78.10F11-HCL	78.10	31.75	38.10	16.00	87.10	38.10	7.90	194.0/43611	213.50	10.42
LD-P78.10F12-HCL	78.10	31.75	38.10	15.88	86.00	38.10	7.90	194.0/43611	213.50	10.37
LD-P78.10F13-HCL	78.10	31.75	38.10	16.00	87.50	38.10	8.00	236.0/53053	259.60	10.00
LD-P78.11F1-HCL	78.11	31.75	38.10	15.88	97.00	41.50	9.50	250.0/56818	280.00	12.60
LD-P78.11F2-HCL	78.11	31.75	38.10	16.51	94.50	39.70	9.52	250.0/56200	275.00	12.53
LD-P78.11F3-HCL	78.11	31.75	38.10	16.46	92.50	44.50	9.70	250.0/56200	275.00	13.60
LD-P78.18-HCL	78.18	33.00	40.00	17.81	102.00	45.00	10.00	333.2/74903	365.80	14.87
LD-P79.37F1-HCL	79.37	41.27	39.70	20.32	101.60	57.20	9.50	347.1/78885	400.00	20.10
LD-P79.37F2-HCL	79.37	41.27	41.30	20.32	105.00	57.20	9.50	481.2/109362	529.00	20.44
LD-P79.37F3-HCL	79.37	43.00	41.00	22.23	108.00	57.20	11.00	400.0/90908	500.00	23.25
LD-P88.90F1-HCL	88.90	44.45	36.60	22.23	117.60	58.00	12.70	471.0/105955	622.70	25.70
LD-P88.90F2-HCL	88.90	44.45	36.90	22.23	117.60	60.00	13.50	556.0/126358	611.00	24.20
LD-P88.90F3-HCL	88.90	44.45	38.60	22.23	119.60	58.00	12.70	559.0/127040	614.90	25.40
LD-P88.90F4-HCL	88.90	44.45	38.60	24.00	120.00	58.00	14.00	559.0/125663	614.90	26.00
LD-P88.90F5-HCL	88.90	44.45	36.50	22.35	108.30	57.15	12.70	471.0/105881	507.60	23.30
LD-P88.90F6-HCL	88.90	44.45	38.10	22.12	112.80	57.15	12.70	445.0/100036	490.00	24.67
LD-P95.25-HCL	95.25	44.45	38.10	23.88	119.00	60.30	14.30	722.0/162306	794.00	28.14
LD-P96.00-HCL	96.00	44.80	39.00	23.80	119.00	60.00	14.00	530.0/120453	609.00	27.45
*LD-P101.60F1-HCL	101.60	25.00	57.00	16.00	117.00	50.00	10.00	227.0/51590	261.00	13.63
*LD-P101.60F2-HCL	101.60	30.00	57.00	18.00	125.50	55.00	12.00	280.0/62944	308.00	18.99
LD-P103.04F1-HCL	103.04	44.53	50.80	22.20	125.50	57.15	12.70	500.0/112400	550.00	24.27
LD-P103.04F2-HCL	103.04	44.53	50.80	25.40	139.70	60.30	16.00	787.4/177000	870.00	30.00
LD-P103.12F1-HCL	103.12	45.21	30.48	23.81	107.95	57.15	12.70	400.0/90908	460.00	22.67
LD-P103.12F2-HCL	103.12	45.21	30.48	23.81	108.00	63.50	12.70	400.0/89920	460.00	24.50
LD-P103.20F1-HCL	103.20	44.45	48.00	22.00	123.50	55.00	13.00	476.0/108180	514.00	23.60
LD-P103.20F2-HCL	103.20	44.45	49.20	23.90	129.00	60.00	14.00	666.4/151450	700.00	26.70
LD-P103.20F3-HCL	103.20	44.45	39.70	19.05	97.60	57.20	9.50	456.0/103635	500.00	17.67
LD-P103.20F4-HCL	103.20	46.00	49.20	23.90	123.50	60.00	13.00	539.0/122498	619.00	26.16
LD-P103.20F5-HCL	103.20	44.45	49.20	22.23	124.50	57.00	12.80	566.4/127327	623.00	24.63
LD-P103.20F6-HCL	103.20	44.45	55.00	22.23	128.80	57.00	12.80	623.0/141589	716.00	24.16
LD-P103.20F7-HCL	103.20	44.45	49.20	22.23	127.20	57.00	12.70	560.0/127272	590.00	22.57
LD-P103.20F8-HCL	103.20	44.45	49.00	23.23	137.00	58.70	16.00	686.0/154213	720.30	30.00
LD-P103.20F9-HCL	103.20	44.45	49.20	26.80	130.00	76.20	14.50	750.0/168600	787.50	32.90
LD-P103.20F10-HCL	103.20	44.45	50.80	22.23	125.20	57.15	12.70	560.0/125888	616.00	24.37
LD-P103.45F1-HCL	103.45	45.24	49.30	23.85	130.00	63.50	14.20	550.0/125000	756.20	27.71
LD-P103.45F2-HCL	103.45	45.24	47.60	23.85	134.00	60.00	15.00	650.0/147725	747.00	27.34
LD-P103.45F3-HCL	103.45	50.00	49.30	25.00	142.50	63.50	16.00	620.0/140907	713.00	32.50
LD-P103.45F4-HCL	103.45	45.30	49.60	23.80	130.00	60.00	14.50	722.0/164084	794.00	31.00
LD-P103.45F5-HCL	103.45	45.20	49.60	23.80	129.40	60.00	14.50	550.0/125000	605.00	31.19
LD-P103.45F6-HCL	103.45	45.20	49.60	25.60	132.30	60.00	14.50	530.0/120453	609.00	28.53
LD-P103.45F7-HCL	103.45	46.20	52.00	23.80	139.20	60.00	16.00	530.0/120453	609.00	31.15
LD-P103.45F8-HCL	103.45	45.24	49.20	23.85	131.00	60.30	14.30	550.0/123640	594.00	27.70
LD-P103.45F9-HCL	103.45	45.20	49.60	23.80	130.00	60.00	14.50	722.0/162306	794.00	31.19
LD-P103.45F10-HCL	103.45	45.20	49.30	23.80	130.30	60.00	14.50	550.0/123640	594.00	28.40
LD-P103.88-HCL	103.88	47.60	49.20	28.05	130.00	84.00	14.00	880.0/197824	950.40	35.60
LD-P114.30F1-HCL	114.30	57.15	52.30	27.97	138.00	79.20	14.20	760.0/172727	978.60	41.20
LD-P114.30F2-HCL	114.30	57.15	50.80	27.71	134.60	75.00	14.00	850.0/191080	918.00	28.50
LD-P114.30F3-HCL	114.30	57.20	52.40	27.94	137.00	76.20	14.50	760.0/172727	836.00	37.80
LD-P114.30F4-HCL	114.30	57.20	52.40	27.94	137.00	76.20	14.50	964.0/219085	1060.40	37.90
LD-P114.30F5-HCL	114.30	57.20	52.40	27.94	149.00	76.20	17.50	964.0/216707	1060.00	43.60
LD-P114.30F6-HCL	114.30	57.20	52.40	29.00	143.00	76.20	16.00	800.0/179840	864.00	39.80
LD-P114.30F7-HCL	114.30	57.15	52.40	27.94	133.40	76.20	14.50	850.0/191080	918.00	38.30
LD-P127.00F1-HCL	127.00	63.50	69.90	31.78	165.70	88.90	15.70	987.0/224300	1379.00	48.60
LD-P127.00F2-HCL	127.00	63.50	68.30	31.78	168.10	90.00	17.00	1100.0/249997	1265.00	50.60
LD-P127.00F3-HCL	127.00	69.85	68.30	35.05	173.00	95.25	19.00	1100.0/249997	1265.00	59.08
LD-P127.00F4-HCL	127.00	63.50	69.90	34.93	176.00	91.00	19.00	1410.0/320450	1551.00	58.40
LD-P127.00F5-HCL	127.00	63.50	69.90	34.93	176.00	88.90	19.00	1300.0/295451	1495.00	54.50
LD-P127.00F6-HCL	127.00	63.50	65.02	34.93	171.00	88.90	19.00	1300.0/295451	1430.00	38.58
LD-P127.00F7-HCL	127.00	63.50	69.90	31.78	165.70	88.90	15.70	1333.0/302905	1532.00	48.60
LD-P127.00F8-HCL	127.00	63.50	65.00	31.75	147.60	82.50	14.20	872.0/198177	955.00	42.93
LD-P127.00F9-HCL	127.00	63.50	65.60	34.93	168.60	91.00	19.00	1300.0/292240	1430.00	57.00
LD-P127.00F10-HCL	127.00	63.50	69.90	31.78	158.80	88.90	15.70	1220.0/274256	1342.00	50.90
LD-P127.00F11-HCL	127.00	63.50	62.00	35.00	166.60	88.90	19.00	1250.0/281000	1375.00	57.45
LD-P127.00F12-HCL	127.00	63.50	69.90	32.00	164.30	90.00	16.00	1330.0/298984	1463.00	52.10
LD-P127.00F13-HCL	127.00	63.50	65.10	35.00	169.50	88.90	19.05	860.0/193328	946.00	55.80
LD-P139.70F1-HCL	139.70	76.20	76.30	38.05	188.00	101.60	19.00	1680.0/377664	1764.00	70.26
LD-P139.70F2-HCL	139.70	76.35	76.30	38.05	188.00	101.60	19.00	1400.0/314720	1540.00	68.12
LD-P140.00-HCL	140.00	65.00	80.00	36.00	191.00	90.00	20.00	1176.0/264365	1293.60	64.24
LD-P152.40F1-HCL	152.40	76.20	35.00	22.20	96.00	51.00	9.50	330.0/75000	378.00	18.17
LD-P152.40F2-HCL	152.40	76.20	74.60	38.10	186.00	100.00	20.00	1600.0/363632	1868.30	69.80
LD-P152.40F3-HCL	152.40	88.90	101.00	47.63	228.70	114.30	22.00	1700.0/386359	1955.00	97.59
LD-P152.40F4-HCL	152.40	76.35	76.30	38.05	188.00	101.60	19.00	1400.0/318178	1610.00	58.36
LD-P152.40F5-HCL	152.40	76.20	76.30	44.00	184.00	120.00	19.00	1500.0/340900	1600.00	63.60
LD-P152.40F6-HCL	152.40	76.20	76.20	38.10	187.60	100.00	20.00	1600.0/359680	1700.00	69.90
LD-P152.40F7-HCL	152.40	88.90	77.00	47.63	204.70	114.30	22.00	1350.0/303480	1485.00	89.77
LD-P152.40F8-HCL	152.40	76.20	76.20	38.05	188.00	101.60	19.05	1880.0/422624	2068.00	57.80
LD-P152.40F9-HCL	152.40	76.20	76.30	38.10	182.30	101.60	19.00	1646.0/370021	1728.30	68.12
LD-P152.40F10-HCL	152.40	76.20	76.20	38.10	179.40	120.00	19.05	1500.0/337200	1600.00	78.10
LD-P152.40F11-HCL	152.40	76.20	76.20	41.00	195.20	106.00	23.00	1500.0/337200	1600.00	77.08
LD-P152.40F12-HCL	152.40	76.35	76.20	38.05	186.00	101.60	19.00	1333.0/300000	1466.30	59.40
LD-P153.62F1-HCL	153.62	34.93	53.98	17.48	107.00	44.50	9.50	150.0/34090	165.00	10.90
#LD-P153.62F2-HCL	153.62	34.93	53.98	17.48	100.00	44.50	8.00	150.0/34090	165.00	9.74
LD-P177.80F1-HCL	177.80	88.90	82.60	44.45	210.00	133.00	22.00	1890.0/429540	2173.00	99.50
LD-P177.80F2-HCL	177.80	88.90	82.60	44.45	210.00	127.00	22.00	2224.0/505448	2557.00	96.80
LD-P177.80F3-HCL	177.80	89.00	81.00	47.00	225.00	129.50	24.75	2444.8/550000	2640.00	104.00

*套筒鏈：表中滾子直徑d1為套筒直徑
